Mesh belt cleaners

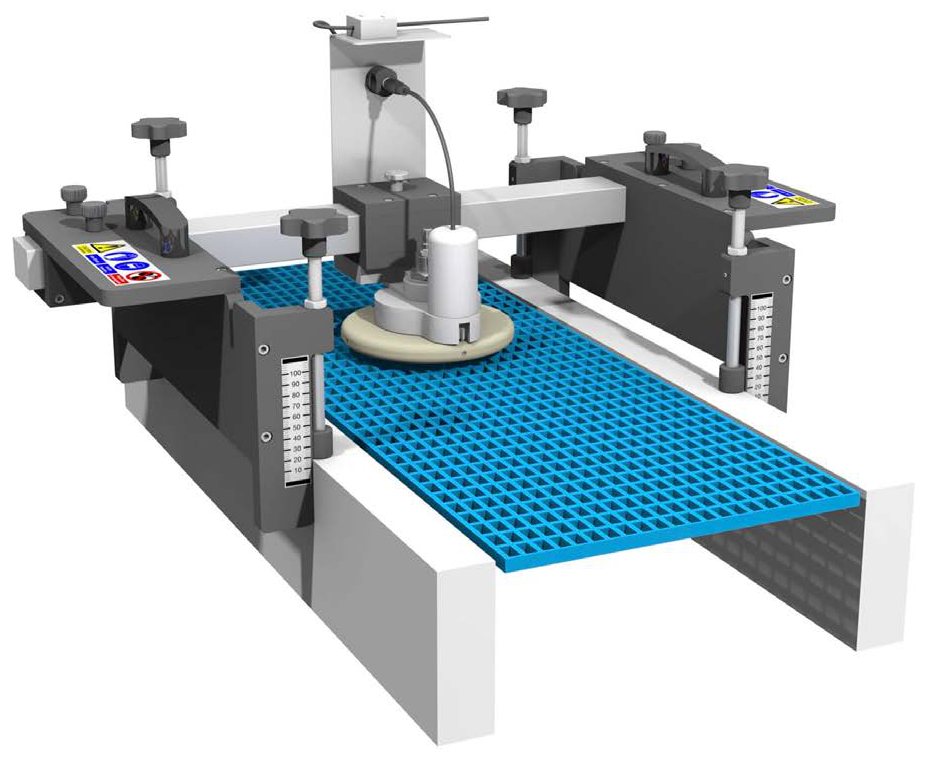

Static Spinner System
A portable steam cleaner for mesh belts with a statically mounted Spinner of manually adjustable position, best suited for narrow belts. Powerful steam jets clean deep into the structure of mesh belts without chemicals, and it quickly adjusts to a wide range of conveyor sizes. Includes Steam Spinner as standard, Ø180mm spinner maximum size.
- Simple on/off via steam generator
- Adjustable for height and width
- Manually positioned and locked
- Cleans in static strips
Technical data
- Steam power
- 18kW or 36-72kW
- Power supply
- 24VDC via KHD steam generator
- Conveyor frame sizes
- Typically up to 450mm (special sizes available)
- Made to order
- Any size in approx 4 weeks
- Weight
- 8kg without Spinner
Suitability by belt width
Which generator power suits which conveyor belt width.
| Belt width | 9 kWKHD-16 | 18 kWKHD-32 | 36 kWKHD36 |
|---|---|---|---|
| All widths | – | ✓ | ✓✓ |
✓✓ Ideal / recommended✓ Suitable– Not suitable
